![SwimEasy Solar Pool Heaters](https://cdn.shopify.com/s/files/1/0256/6910/7809/files/SwimEasy-Solar-Pool-Heaters-Hero-Image-2_600x600.png?v=1707260088)
🎥 Installation Guide - How To Install SwimEasy (Fast & Easy!)
The Perfect Choice For Those Wanting:
What If I Have Questions During My Install?
🎥 Expert Support At Your Fingertips!
STATE-OF-THE-ART MANUFACTURING
![SwimEasy Solar Panel Header Measurements & Sizing Chart](https://cdn.shopify.com/s/files/1/0256/6910/7809/files/Header_Measurements_Sizing-Reduced.png?v=1603693679)
NOT ALL PLASTIC IS CREATED EQUAL
Products made from plastic typically start out as one-of-two types of resin blends:
Masterbatch: Natural (clear) resin pellets are mixed with a concentrate during the extrusion process. This concentrate would contain additives and fillers used to affect the end-product’s physical appearance or properties. Sometimes called a “salt-and-pepper blend,” this type of mix is less expensive for the manufacturer to use, but can often result in uneven distribution of key additives.
Precompounded: Compounding is a process of melt-blending plastics with other additives. This process alters the physical, thermal, or aesthetic characteristics of the plastic. Compounding starts with a base resin, which is blended with additives in an industrial mixer, producing a final resin ready for use in manufacturing. Additives are evenly distributed throughout the resin and subsequent end-products.
HEAVY-DUTY PANEL CONNECTOR HOSES
Molded EPDM rubber hoses designed specifically for use with solar pool heater panels. Used to connect solar panels to one another, attach end caps and vacuum relief valves.
- Durable UV-resistant EPDM rubber for long life in direct sun.
- Reinforced center prevents deformation from pressure and vacuum.
- Hose-clamp indicator ridges for perfect placement and seal.
- 3.75" wide.
*Only hoses made specifically for pool solar applications should be used for connecting solar pool panels or any necessary hardware. Rubber coupling hoses not designed for this purpose may balloon and explode under the high operating pressure of a solar pool heating system.
DURABLE POLYESTER STRAPPING
- Superior to Dacron; Polyester webbing strap is lightweight & durable.
- Superior to Steel: Steel strapping can damage collectors over time. High strength polyester keeps panels secure without rubbing into the exterior.
- Extruded polyester fibers are woven; will never fade or turn white like dyed fabric strap.
- Third party testing proves this polyester-weave web strapping to be equal in strength and durability to coated stainless steel. Will hold strong without damaging the solar panels.
THE BOTTOM LINE
WHAT'S INCLUDED
Each DIY Kit Includes Everything You Need To:
- Install the selected number of solar panels in a single row.
- Mount each solar panel to your preferred installation surface (roof or rack).
- Make water connections to and from each panel.
- Make water connections to the systems’ supply and return plumbing lines.
- The pipe adapters connecting the system piping to the panels are high temperate CPVC.
- Contains the parts necessary to aid in gravity drainage of the panels and piping.

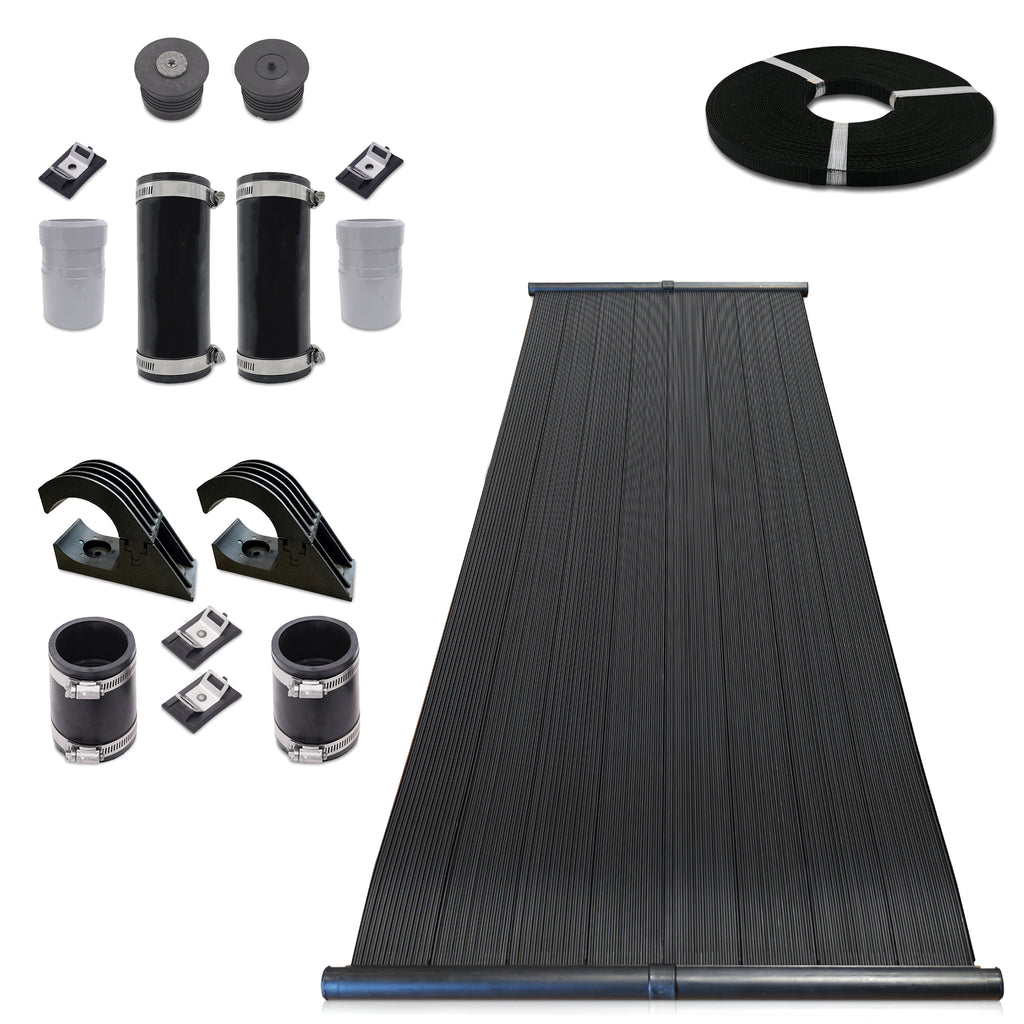

The Following Components are Included in Each DIY Kit:
Panel Kit: Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another. One (1) panel kit is included for each solar panel.
Each panel kit contains;
- (1) Outlet Header Hold-Down Bracket Assembly
- (1) Outlet Header Bracket Flashing Base
- (2) Strap Bracket, Stainless Steel
- (2) Strap Bracket Flashing Base
- (4) Hose Clamp, Stainless Steel
- (2) Panel Connector Hose (3 3/4” long)
Row Kit: Contains the parts necessary for making water connections from a row of solar pool heating panels to the systems supply and return plumbing lines. Also contains the parts necessary to aid in gravity drainage of the panels and piping. One (1) row kit is included for each system.
Each row kit contains;
- (1) Outlet Header Hold-Down Bracket Assembly
- (1) Outlet Header Bracket Flashing Base
- (2) Strap Bracket, Stainless Steel
- (2) Strap Bracket Flashing Base
- (4) Strap Clamp, Stainless Steel
- (4) Hose Clamp, Stainless Steel
- (1) End Cap
- (1) Vacuum Relief Valve
- (2) System Connector Hose (7” long)
- (2) Pipe Connector, CPVC
Hold-Down Strap: Fastens solar pool panels to a supporting surface (roof or rack) and keeps them secure. One (1) 100' Bulk Roll is included for each system.
- For normal wind climates; two (2) straps are recommended per panel.
- For high wind climates, between three (3) and four (4) straps are recommended per panel. Supplemental High-Wind Panel Installation Kits & High-Wind Row Installation Kits are also available for high wind climates (sold separately).
Option To Include Premium Pentair Valves: ("Valves Included?" Option)
You have the choice of either including, or not including, a full set of valves necessary for completing the plumbing connections from your solar pool heating panels to your pool's pump & filtration system. This package of Premium Pentair Pool Valves has been bundled together to provide you with a complete set of the best valves you can get (should you choose to include them).
If you are installing a system for the first time, these valves will be needed to complete the plumbing connection from your solar panels to your pool's pump and filtration system. If you are replacing an existing system, these valves may already be in place, and new ones would then not be needed.
Generally Speaking:
- For new installations (first time installs): Valves will be needed.
- For replacing an old/existing system: Valves not required.
If you choose to include valves, you will receive a full set of Premium Pentair CPVC Optimum positive-seal pool valves. These are top of the line valves that provide a lifetime of superior performance and have excellent flow characteristics for a high flow rate, ideal for maximizing the performance and efficiency of your solar pool heating system.
A 3-port diverter valve is manually adjusted to turn solar on and off. Two isolation valves are used to completely shut off solar for maintenance and winterization (prevents water from entering the solar panels). The check valve is used to prevent water from flowing backwards through your pump & filter. Includes premium Pentair lube-free valve’s, 2″-2.5″ CPVC.
If you choose to include valves, you will receive the following:
- (1) Pentair 3-Port Solar Valve w/ Drain Down, CPVC, 2″-2.5″
- (1) Pentair 2-Port Check Valve, CPVC, 2″-2.5″
- (2) Pentair 2-Port Isolation Valve, Positive Seal, CPVC, 2″-2.5″
WHAT SIZE SYSTEM DO I NEED?
The most relevant aspect of sizing a system is based on the square footage of your pool. We typically recommend matching anywhere from 50%-100% of your pools total surface area to solar collector coverage (solar panels).
*For example, if your pool is 500 square feet, then 50% solar coverage equals 250 square feet of solar panels, 75% solar coverage equals 375 square feet of solar panels, etc. From this point, you'll want to look at selecting a panel size that fits your installation area.
- For a complete breakdown on how to select & size the right solar pool heating system, see our sizing help page:
SIZING GUIDE: How Many Panels? Which Brand? (CLICK HERE)
